SCR403 RFID Access Control
SCR403 RFID Access Control
SCR403 RFID Access Control

Access Control

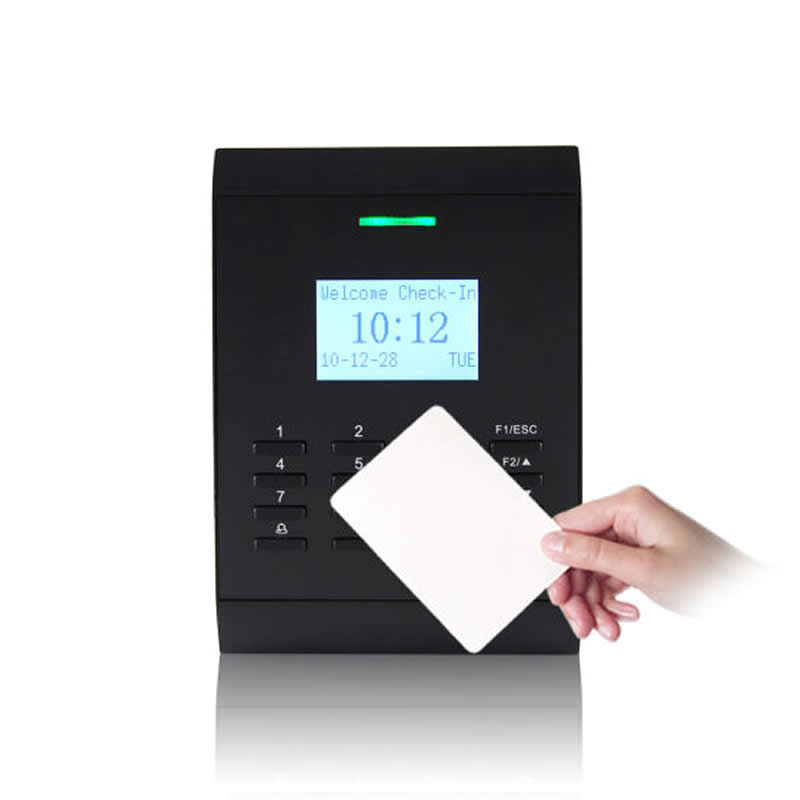

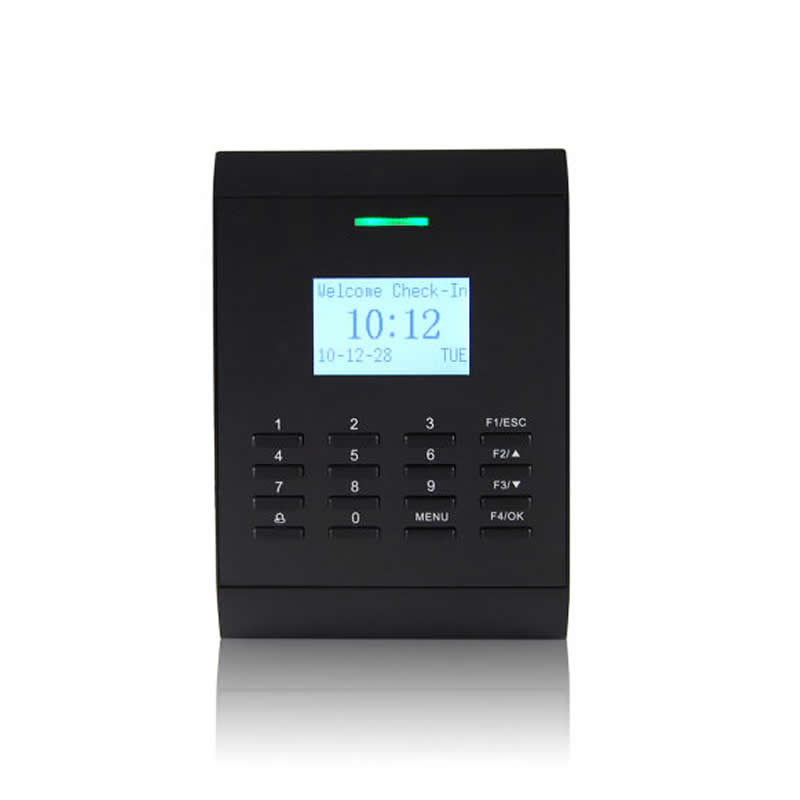

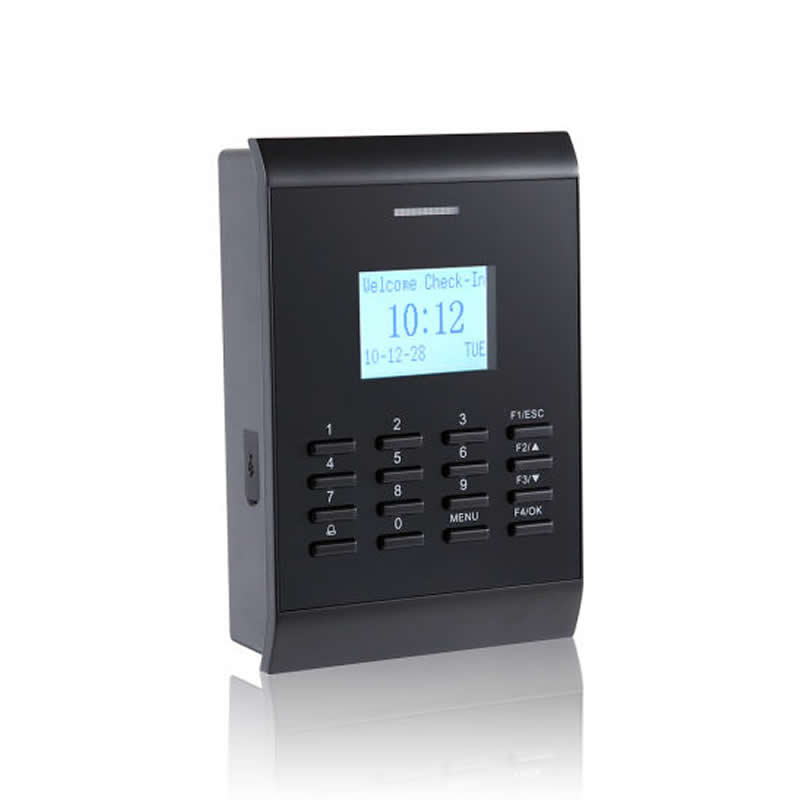

SC403 RFID ACCESS CONTROL


SC403 is an access control devices produced by ZKTeco, which is made with elegant design and professional surface treatment. The device have lock control, alarm, exit button, door sensor. The wiegand-in interface is used to connect external reader to construct master and slave system. Also the device can be used to connect with a control panel as a reader by wiegand-out interface. The operation can be done on the device through LCD display, also can be done on PC software and upload to the device through TCP/IP, RS232/485 communication. The USB-host is used for data download and upload, including user template and record etc. SC403 is suitable for house, small office and factory etc.

SC403 is suitable for house, small office and factory etc

SC403 RFID Access Control Features:

  • ACCESS CONTROL INTERFACE: 3rd party electric lock, door sensor, exit button, alarm, doorbell
  • CARD CAPACITY: 30,000
  • AUXILIARY INTERFACE: 1 EACH for linkage function
  • SUPPORTED SOFTWARE: ZKAccess 3.5
  • STANDARD FUNCTIONS: Anti - Passback
  • COMMUNICATION: TCP/IP, RS485 & USB-Host
